YERO SHADE 200 Motoirsed Aluminium shutter

Shutters

Model Number: YERO SHADE -Aero blades

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping
Yero Shade 200mm motorised aluminium shutter
Electrically operated ,Exterior usage for :
-privacy
-shading
- Sun control

Product Description

BLADE END PLATES :
Aluminium alloy , AL6063 , Durable ,Coated to match blade colors.

BLADE SIZES : 115mm, 150mm,200mm ,300mm
Aluminium alloy : AL6063 T5 or T6 , Powder Coated or Natural anodise finishings.

Aluminium Frame size : 97x40
Extruded from 6063,
Manufactured to AS/NZS 1866
Powder coating and Natural anodise finishings
in align with AS3715:2002 and AS1231:2000

Other componentries :
Stainless steel grade 304 Screws,Plastic bushes , Washers & Clips

Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request

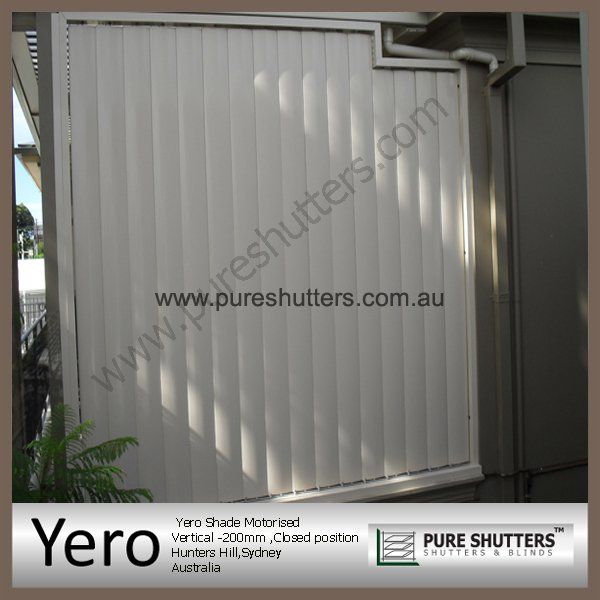

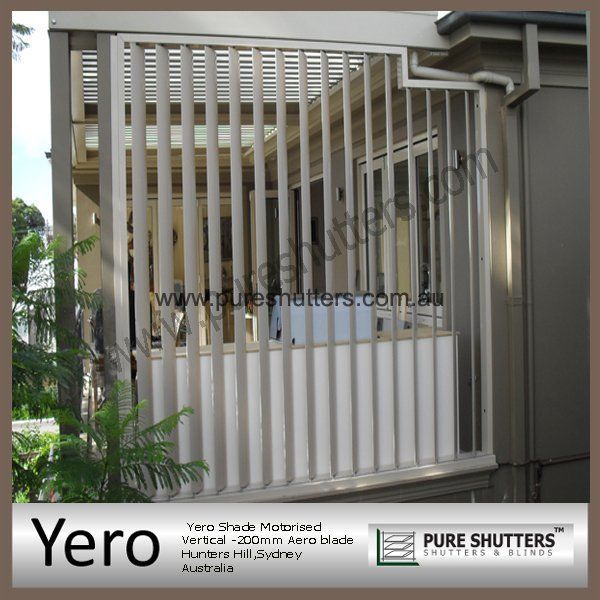

A. YERO SHADE VERTICAL -200mm Aerofoil blade type(Looking from inside to outside):

B. MANUALLY OPERABLE OR MOTORISED,COMPLETE WITH OUTSIDE FRAME :

C. YERO SHADE ACCENT SHUTTERS
- REMOTE CONTROLLED OR WITH WALL SWITCH ,COMPLETE WITH MOTOR CONTROL UNIT and Optional Rain sensor :

D. YERO SHADE CAN BE IN KNOCK DOWN , SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL SIZE AND IF ABLE TO FIT THE 20' or 40' CONTAINER
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: YERO SHADE -Aero blades
  • Material: Aluminum Alloy
  • Opening Pattern: Vertical
  • Blade Type: Aerofoil shape
  • Blade End plates: Aluminium
  • Blade sizes: 115mm,150mm,200mm,300mm
  • Blade Material: Aluminium Alloy AL6063 T5
  • Operation: Manually operable or Remote controlled
  • Optional accessories: Rain sensors
  • Applications: Shading , Privacy , Ventilation,Security
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
