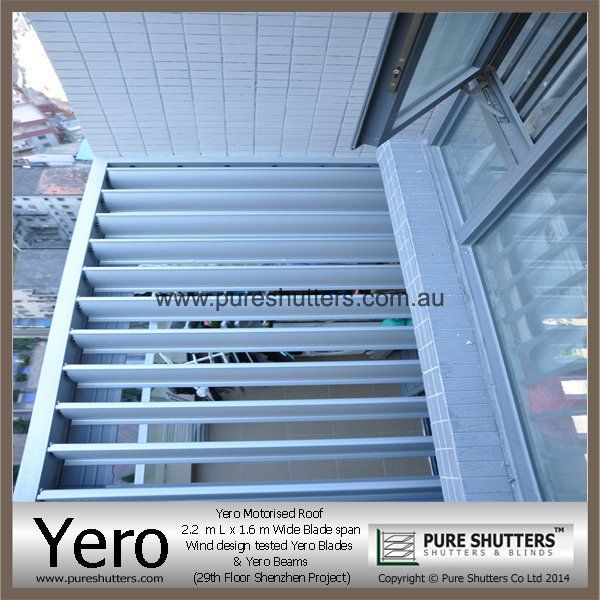

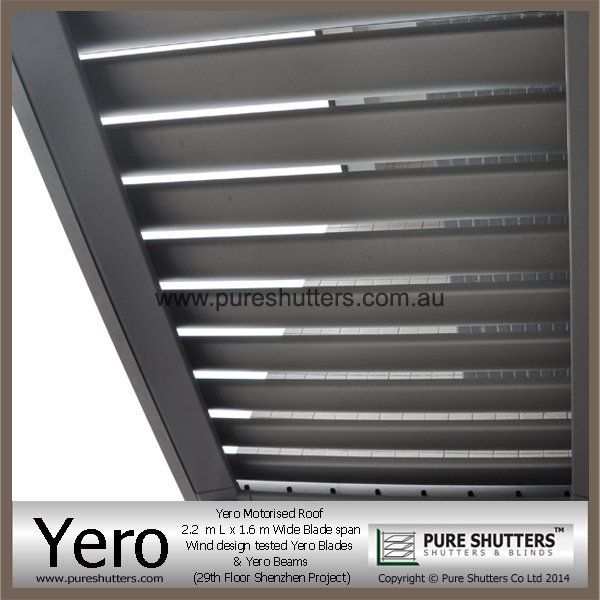

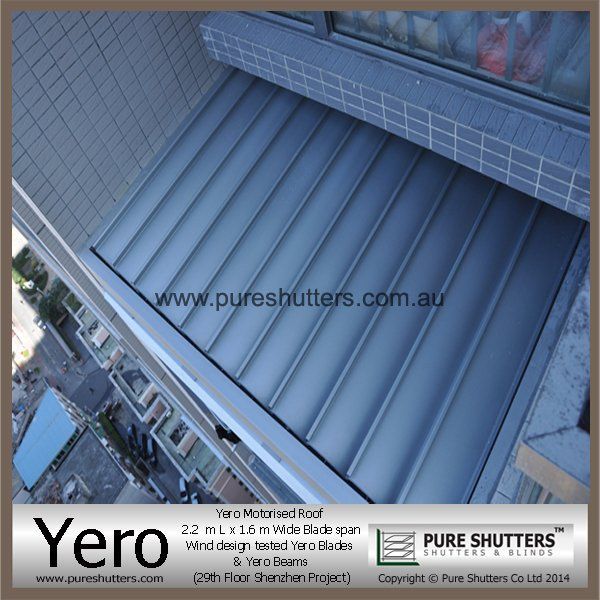

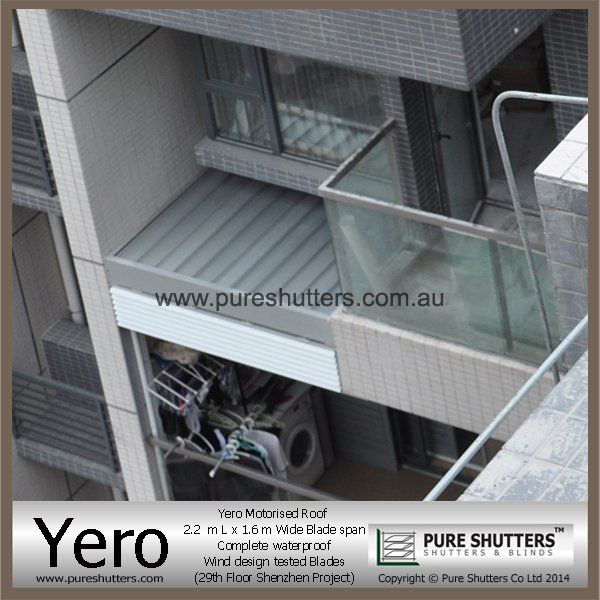

Aluminium Outdoor Patio louver motorized opening roof

Shutters

Model Number: YERO 188 CLASSIC

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping
Also called:
Roof louvers
Aluminum opening roofs
Motorized Opening Roofs
Outdoor Patio roofing
Aluminium motorized Opening Roof
Aluminium Patio Louver Opening roof

BLADE END PLATES :
Aluminium alloy , AL6063 , Durable ,Coated to match blade colors.

BLADE SIZES : 188mm
Aluminium alloy : AL6063 T5 or T6 , Manufactured to AS/NZS 1866 and GB5237
Powder Coating finishings to AS3712:2002 and AAMA 2603-05 & AAMA 2604-05
Wind Design Tested to NZS 3604
PS1 for NEW ZEALAND - Available upon request

YERO BEAM : 215 x 55 mm
Aluminium Alloy : AL6063 T5 or T6 , Manufactured to AS/NZS 1866 and GB5237
Powder coated finishings to AS3715:2002 , AAMA 2603-05 & 2604-045
Wind Design Tested to NZS 3604
PS1 for NEW ZEALAND - Available upon request

Complete with Gutter and Corner spout  for downpipe

Other componentries :
Stainless steel grade 304 Screws,Plastic bushes , Washers & Clips

Standard Color finishes :
Powder coat >60 micron - Standard White Satin ,Grey Colors
Custom made colors available upon request

A. Aluminium Outdoor Patio louver motorized opening roof with built-in Electric motor

B. Remote control or Wall switch control or both .

C. Complete Waterproof  with Optional Rain sensor.

D. Complete with Gutter and Rain spout for down pipe

E. Wind Design Tested to NZS 3604

F. MOTORISED OPENING ROOF SUPPLIED IN KNOCK DOWN , SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL REQUIRED SIZE AND IF ABLE TO FIT INTO 20' or 40' CONTAINER
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: YERO 188 CLASSIC
  • Material: Aluminum Alloy
  • Opening Pattern: Horizontal
  • Product name: Motorized Opening Roof
  • Blade Type: Aerofoil shape or Half Aero blade
  • Blade End plates: Aluminium
  • Blade sizes: 188mm
  • Blade Material: Aluminium Alloy AL6063 T5
  • Operation: Remote control or Wall switch
  • Applications: Shading , Privacy , Ventilation,Sun blocker
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
