Exterior Interior swinging Shutter door

Sombra

Model Number: SDS009010

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping

SDS009010 SOMBRA exterior interior swinging shutter door

Hand Operable or Adjustable aero blades  with a slim frame suitable for windows and other applications.



Also called :

  • Adjustable Window louvers
  • Sliding window shutters
  • Adjustable window shutters
  • Aluminium louver
  • Louvered windows
  • Shutter door
  • Exterior louvered door
  • Aluminium Interior Security shutters
  • Exterior aluminum shutters
  • Exterior aluminum window shutters
  • Closed blades Sliding shutter door
  • Dual track sliding shutter door
  • Open blade sliding shutter door
  • sliding shutter door
  • Operable 90mm Aluminum shutter door
  • Adjustable aluminum shutter door
  • Exterior shutter door
  • Aluminum shutter door
  • Exterior aluminum shutter door

Various blade sizes & Features :

  • Aero Blade sizes :55mm,68mm,90mm ,115mm Aerofoil blade
  • Operable or Adjustable blades
  • Finishing : Powder coating , Natural Anodise
  • Installation or Mounting :Frame : Optional
    • Sliding Shutters
    • End Fixed Bi-folding shuttters
    • Fixed Mount shutters
    • Hinge Mount shutters

PURE SHUTTERS SOMBRA Aluminium Shutters has multiple applications listed down below .

With its versatility and various mounting capabilites ,It is a favourite choice for Architects,Builders,end-consumers and other users .



SOMBRA can be mounted with various combinations due to its ease of installation and performance.



The Aluminium blades are shaped to Aerofoil type to have a smoother flow of air and were wind design tested to NZ3604 from Self weight ,low wind zone to extremely high wind zones which are also equivalent to Australian Standards of Category 1 to 4 wind zones .



Suitable to any locations specially in tropical areas ,Nearby the sea or beaches, Windy terrains and other harsh climates.



Materials used:

1. Aluminium Material :

Made of AL6063,

Minimum thickness at 1.2mm ,

Tempered to T5 or T6

AS1231 Compliance



2. Stainless steel components:

SUS 303 & 304



3. Plastic components:

Anti UV

Anti Brittle

100% Virgin Material

Strong ,Rigid & Susceptible to high & Low outside Temperature ( 120 Deg C to -25 Deg C) .



Multiple Applications:

  • Exterior Sun Shading
  • Interior Sun Shading
  • Exterior Facade
  • Wall Partitions
  • Doors
  • Windows
  • Privacy
  • Awnings
  • Ceilings
  • Bathroom Shower doors
  • Bathroom Windows
  • Carport doors
  • Wall Dividers
  • Kitchen window shades
  • Ktchen window
  • Veranda shades
  • Ballustrades (less than 70mm gap spacing,Safety Compliance)

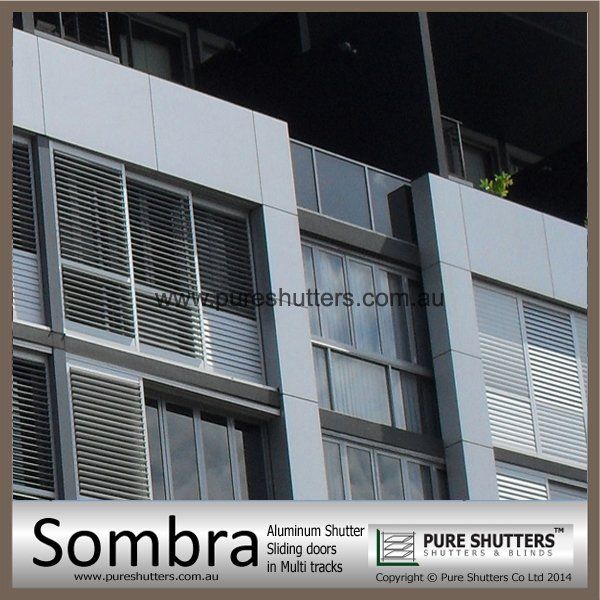

Medium rise commercial and residential - Shutter door

SDS009010 (1) Shutter door.jpg





Sliding mount assembly



SDS009010 (2) Shutter door.jpg

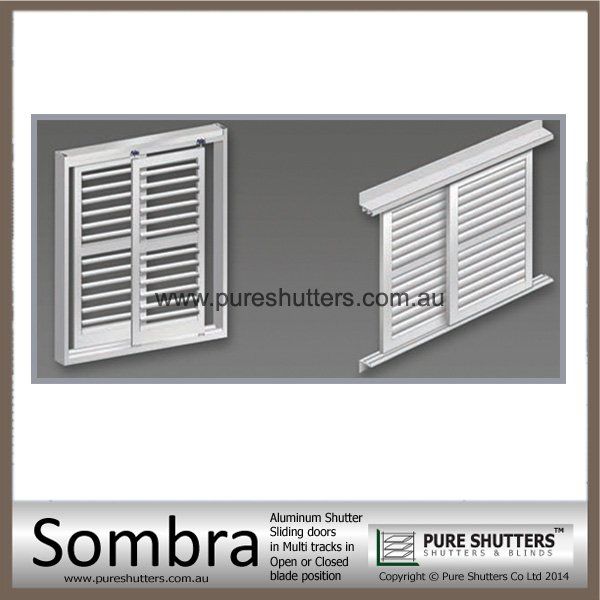

Open blades or closed blades when sliding



 SDS009010 (3) Shutter door.jpg

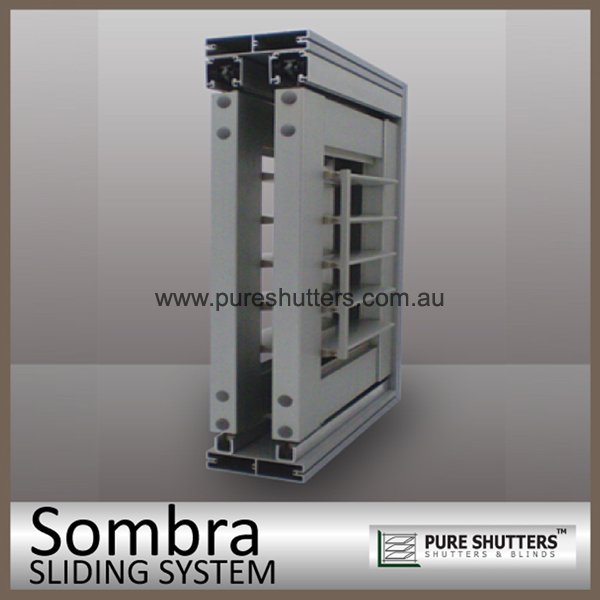

Track options : Single track , Dual track or Multi sliding tracks



SDS009010 (4) Shutter door.jpg



Lock Options:

  • Shutter Key Lock
  • Sliding door bolt lock
  • Flush bolts

Other applications:

  • Sliding shutter doors compliments with Glass Aluminum door
  • Sun shade aluminum louvers
  • Aluminum shutters either mounted in front or back of window glass
  • Sliding shutters with Aluminum adjustable louver
  • Excellent for window shade
  • Sliding door aluminum for window security shutters
  • Sliding shutters with manually adjustable louver blades like air conditioner louver
  • Exterior aluminum shutters
  • Aluminum sun louver
  • Sliding window shutters
Great subsitute for the following items below that will not bring much thermal comfort , durability and requires much maintenance which translates to more costs for end-users :
  • Plantation shutters - Needs frequent maintenance , Prone to cracks ,needs repainting
  • PVC blinds - Toxic PVC for the environment , Prone to warping , Limited panel widths
  • Blinds - Not durable
  • Outdoor blinds - Not suitable for high winds , Not easy to maintain , Not durable
  • Blinds between glass doors - Unrepairable , Not durable

Quite adaptable to any application or complimentary function to :
  • Doors
  • Aluminum louver door
  • Louver gates
  • Glass windows

 Wind Design tested in accordance with Aluminum structures AS/NZS 1664.1:1997
  • Free standing structures -Shutters free standing
  • Fixed to Buildings - Shutters fixed to an existing building
  • Category 1 to 4 (Australia)
  • Various wind zone(New Zealand) :Wind zone in line with NZS 3604:2011
Packaging & Shipping

Packaging :



  • Aluminum Shutter blades are interlaced with copy paper ,
  • Panels are wrapped with plastic sheet ,
  • Sides and corner protection ,
  • Partitions front and back ,
  • Outside carton ,
  • Outside markings and strapped

Shipping :

20 or 40 foot container

LCL or FCL


Contact:
Email:[email protected]
www.pureshutters.com.au
www.pureshutters.com.au


  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: SDS009010
  • Material: Aluminum Alloy, AL6063,Aluminum Alloy
  • Opening Pattern: Horizontal
  • Sombra 90mm: 90mm Aerofoil shape blade
  • Finishing,Coating: Powder coating,60 microns,AS3715,AAMA 2603 & 2604
  • Finishing,Anodising: Natural Anodise,Sand Blasted,20microns,AS3715
  • Installation: Sliding,End Fixed Bi-folding,Fixed Mount,Hinge Mount
  • Hardness: Tempered to T5 or T6
  • Compliance: AS3715:2002,AAMA 2603,AAMA 2604,AS 1231,NZ3604
  • Wind rating: Design tested to NZ3604 / Category 1 to 3
  • Powder: Dulux or Interpon
  • Warranty: 5 to 10 years
  • Aluminum Shutter blades are interlaced with copy paper
  • Panels are wrapped with plastic sheet
  • Sides and corner protection
  • Partitions front and back
  • Outside carton
  • Outside markings and strapped
  • Packaging Details: Louvre blades are interlaced with copy paper , Panels are wrapped with plastic sheet ,Sides and corner protection , Partitions front and back , Outside carton , Outside markings and strapped . Shipping :
  • 20 Foot or 40 Foot Container
  • LCL or FCL
  • Delivery Detail:
  • 4 to 6 weeks
