Celos 152mm Aluminum Window Louver

Shutters

Model Number: CELOS

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping
Celos Window Louver with blade holders suited for 152mm wide Aluminium, Glass or Timber blades. Operable Handle to adjust blade

Celos 152mm Aluminum Window Louver

BLADE END CAPS :
UV resistant , CUSTOM MADE "PE ALLOY"

BLADE HANDLE 110mm :
UV resistant , CUSTOM MADE "NYLON ALLOY"

No.of Blades per Handle  : Minimum Two blades, Maximum Nine Blades

Aluminium U Channel 38x20 mm & Cross Bar handle :
Extruded from 6063,
Manufactured to AS/NZS 1866
Powder coating and Natural anodise finishings
in align with AS3715:2002 and AS1231:2000

Other componentries :
Stainless steel grade 304 Screws,Washer ,Rivet & Clips
Aluminium Bolts or Brass Bolts(optional)

Blades :
6mm Aluminium Hollow blades
6 to 6.38mm Toughened & Laminated Glass
Timber : Available upon request

Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request

RHS Frames (Optional) :
RHS supplied by others or available upon request

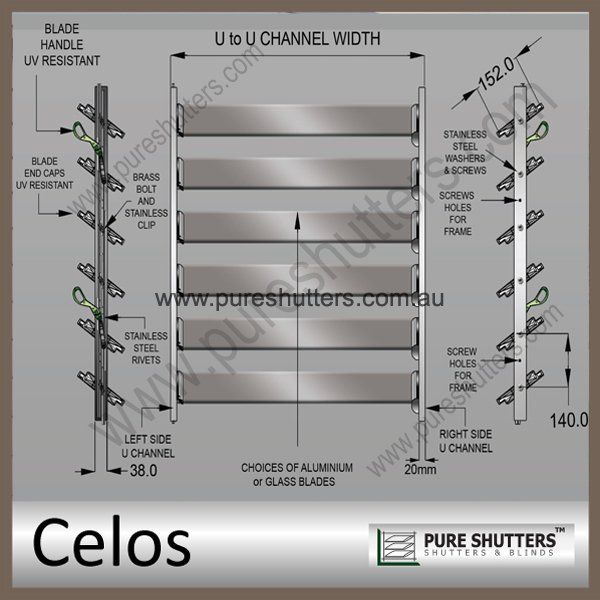

U Channel Assembly into frame :
Pre-punched holes on U Channel for ease of
screwing into frame

304 Grade Stainless steel Screws

Blade Cutting Deductions : U to U Channel WIDTH less 55mm
Tolerance +/-1mm, Depends on how tight when operating
the blade handle .

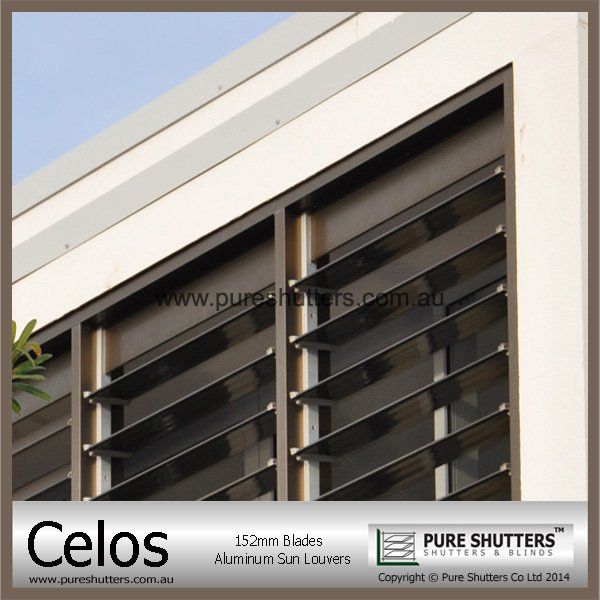

A. CELOS MOUNTED INTO OUTSIDE FRAMES :

B. CELOS SPECIAL PLASTIC ALLOY BLADE END CAPS AND HANDLE :

C. VARIABLE PLASTIC HANDLE LOCATIONS AND ADJUSTABLE BLADE ANGLES
FOR NATURAL LIGHT REFLECTION , AIR VENTILATION , PRIVACY OR VIEWING ANGLE:

D. CELOS LOCKABLE HANDLE FOR SECURITY PURPOSES AND WATER TIGHT :

E. CELOS WITH SELF DRAINING BLADE END CAPS THAT KEEPS RAIN WATER AWAY:

Due to its excellent reliability and durability features as follows :
Excellent water tightness
Able to withstand moisture
Humid environment
Withstands Hot and Cold water
Flexible blade options of - Aluminum , Timber or Glass louvre blades
Below are further applications :
Bathroom louvers
Bathroom louver door
Bathroom louver window
Bathroom glass louver door
Bay windows
Bay window sliding
Bathroom windows
Bathroom sliding windows
Bathroom glass door
Bathroom sliding glass door
Bathroom door
Balcony french doors
Aluminum window replacment
Aluminum tempered glass windows
Bathroom door waterproof
Aluminum sliding glass windows
Aluminum sliding glass doors
Aluminum sliding door for bathroom
And other more applications not limited to the above
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: CELOS
  • Material: Aluminum Alloy
  • Opening Pattern: Horizontal
  • Blade Type: Flat 152mm x 6mm
  • Blade End Caps: Special Plastic Alloy
  • Blade Material: Aluminium Alloy
  • Blade optional material 1: Glass
  • Blade optional material 2: Timber
  • Applications: Shading , Privacy , Ventilation,Security
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
