Economical DC 12V /24V Tubular Lienar Actuator

Model Number: PSAT01DC006

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping

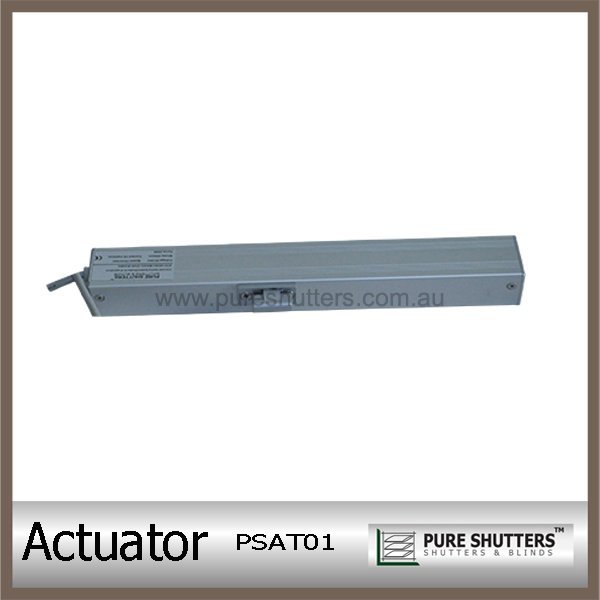

Economical DC 12V /24V Tubular Lienar Actuator

Application :
-  Commercial building adjustable blinds window
-  Schools blinds electric
-  Exhibition halls blinds glass
-  Industrial buildings electric window
-  Warehouses louvers aluminum
- aluminum door with Electric motor
- Fire shutter
- Fire smoke exhaust shutter
-Window fire shutters
-Sound proof shutters
-Motorised Shutters windows
- Window winder
- Metal shutters
- Home security shutters ,
- Electric shades shutter
- Horizontal Jalousie

Specifications :
Operating Voltage : 24V DC +/- 10% ,
Maximum Operating Current : 0.8A to 1.2A
Reliability tests carried out : 30,000 cycles

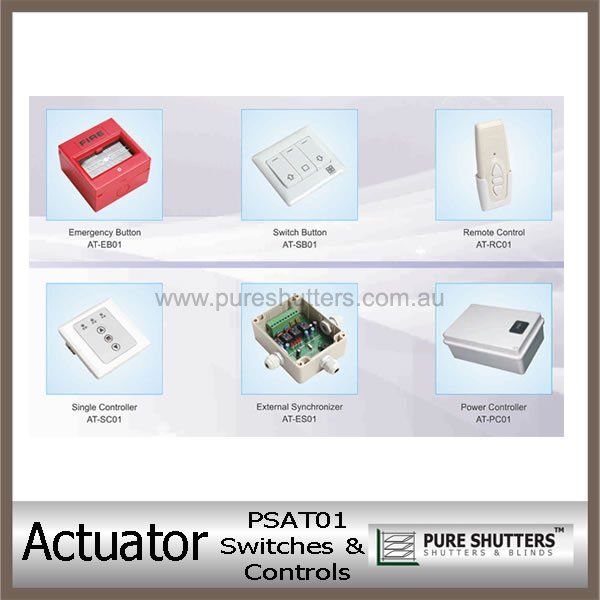

Chain Winder or Chain Actuator accessories :
- Remote control unit
- Emergency button switch
- Emergency push button
- Emergency key
- Emergency stop button
- Alarm button
- Wall switch
- Single controller
- Motor control unit
- Power controller
- External synchroniser
- Electronic switch buton
- Timer and other custom made controls

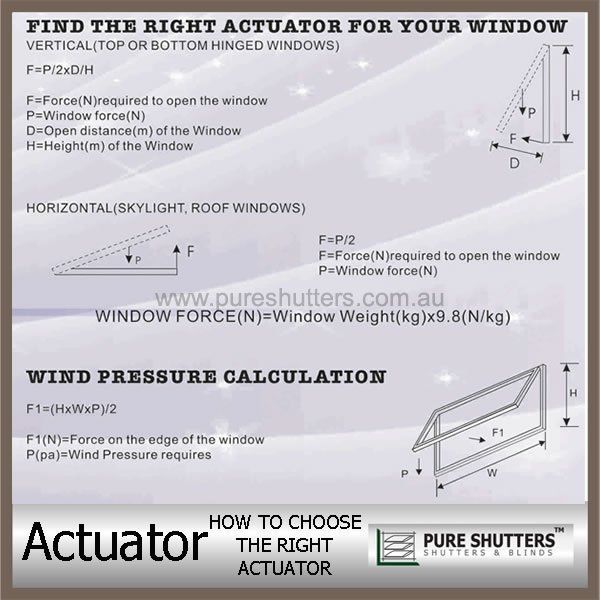

How to choose the right Economical DC 12V /24V Tubular Lienar Actuator

How to choose the right Economical DC 12V /24V Tubular Lienar Actuator

How to choose the right Economical DC 12V /24V Tubular Lienar Actuator







  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: PSAT01DC006
  • Product Name: Window motor 24V linear actuator for glass
  • Operating Voltage: DC 24V Electric motor drive
  • Maximum Operating Current: 0.4A to 1.2A
  • Force: 250N
  • Stroke distance: 50 to 300mm
  • Speed: 10mm/sec
  • Ambient temperature: -20 to +75 Degrees Celcius
  • Accessories: Crank arm,Torque arm and connectors
  • Color: Natural Anodise or custom made colors
  • Actuator diameter: 36mm minimum or custom made sizes
