Yero shade Adjustable exterior sunshade Aluminium shutters

Shutters

Model Number: YERO SHADE -YS008001

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping

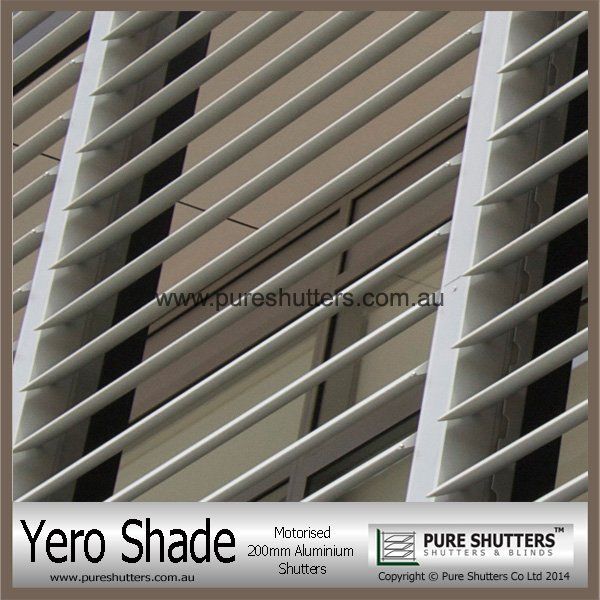

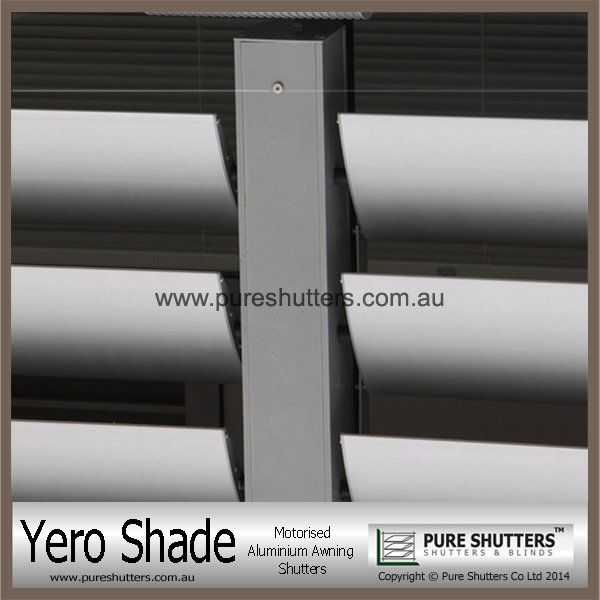

Adjustable Exterior Sun Shade Aluminium shutters
Exterior application for ::
Privacy shutter
Ventilation louvers
And others

Yero Shade Adjustable Exterior Sunshade Aluminium Shutters

YERO SHADE YS008001

 Also called
Yero shade Exterior Sunshade aluminium shutters
Yero shade Adjustable sunshade aluminium shutters
Yero Shade Electrically Operated Aluminum Shutters
Yero Shade Motorised Electric  Sun Shade Aluminum Louvers

Product Description

BLADE END PLATES :
Aluminium alloy , AL6063 , Durable ,Coated to match blade colors.

BLADE SIZES : 115mm, 150mm,200mm ,300mm
Aluminium alloy : AL6063 T5 or T6 , Powder Coated or Natural anodise finishings.

Aluminium Frame size : 97x40 RHS
Extruded from 6063,T5 or T6
Manufactured to AS/NZS 1866 and  AS1231:2000

Blade Orientation Options :
Horizontal Shutter
Vertical Shutter

Other componentries :
Stainless steel grade 304 Screws,Plastic bushes , Washers & Clips

Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request

A. YERO SHADE -Aero blade ,Sun Shade Aluminium Shutters
B. MANUALLY OPERABLE OR MOTORISED,COMPLETE WITH OUTSIDE FRAME
C. REMOTE CONTROLLED OR WITH WALL SWITCH ,COMPLETE WITH MOTOR CONTROL UNIT and Optional Rain sensor
D. YERO SHADE CAN BE IN KNOCK DOWN , SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL SIZE AND IF ABLE TO FIT INTO THE 20' or 40' CONTAINER

MULTIPLE APPLICATIONS :
Window shutters
Louvered Windows
Louver Roof
Security Shutters
Sun Shade Louvers
Louver Door
Sun Louver
WIndow Louver
Ventilation Grilles
Air Grille
Motorised Exterior Aluminium Shutters
Ventilation louvers

  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: YERO SHADE -YS008001
  • Material: Aluminum Alloy
  • Opening Pattern: Horizontal
  • Blade Type: Aerofoil shape
  • Blade End plates: Aluminium
  • Blade sizes: 115mm,150mm,200mm,300mm
  • Blade orientation: Horizontal or Vertical
  • Blade Material: Aluminium Alloy AL6063 T5
  • Operation Type 1: Hand operated
  • Operation Type 2: Wall switch and/or Remote control
  • Optional accessories: Rain sensors
  • Applications: Shading , Privacy , Ventilation,Security
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
