YERO SHADE YS001005 Electric Window shutters

Shutters

Model Number: YERO SHADE -YS001005

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping
Yero Shade YS001005 Electric window shutters
Exterior application for ::
Privacy shutter
Sun Shade louvers
Air vent grills

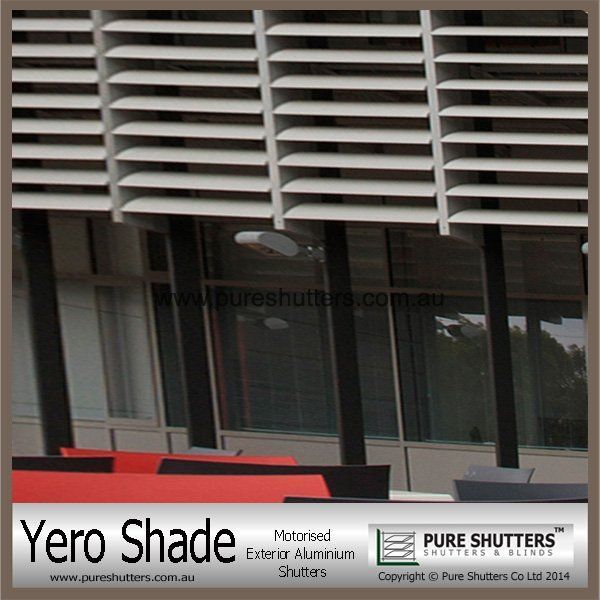

YERO SHADE YS001005-Electric Window Shutters
 Also called
Yero Shade -Motorised Electric Shutters
Yero Shade -Motorised Aluminium Shutter
Yero Shade Electrically Operated Aluminum Shutters

Product Description

BLADE END PLATES :
Aluminium alloy , AL6063 , Durable ,Coated to match blade colors.

BLADE SIZES : 115mm, 150mm,200mm ,300mm
Aluminium alloy : AL6063 T5 or T6 , Powder Coated or Natural anodise finishings.

Aluminium Frame size : 97x40 RHS
Extruded from 6063,T5 or T6
Manufactured to AS/NZS 1866 and  AS1231:2000

Blade Orientation Options :
Horizontal Shutter
Vertical Shutter

Other componentries :
Stainless steel grade 304 Screws,Plastic bushes , Washers & Clips

Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request

A. YERO SHADE -Aero blade type  , DC24V Operated Motorised Electric Shutters
B. MANUALLY OPERABLE OR MOTORISED,COMPLETE WITH OUTSIDE FRAME
C. REMOTE CONTROLLED OR WITH WALL SWITCH ,COMPLETE WITH MOTOR CONTROL UNIT and Optional Rain sensor :
D. YERO SHADE CAN BE IN KNOCK DOWN , SEMI-KNOCK DOWN OR FULLY ASSEMBLED DEPENDING ON ACTUAL SIZE AND IF ABLE TO FIT INTO THE 20' or 40' CONTAINER

MULTIPLE APPLICATIONS :
Window shutters
Louvered Windows
Louver Roof
Security Shutters
Sun Shade Louvers
Louver Door
Sun Louver
WIndow Louver
Ventilation Grilles
Air Grille
Motorised Exterior Aluminium Shutters
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: YERO SHADE -YS001005
  • Material: Aluminum Alloy
  • Opening Pattern: Horizontal
  • Blade Type: Aerofoil shape
  • Blade End plates: Aluminium
  • Blade sizes: 115mm,150mm,200mm,300mm
  • Blade orientation: Horizontal or Vertical
  • Blade Material: Aluminium Alloy AL6063 T5
  • Operation Type 1: Hand operated
  • Operation Type 2: Wall switch and/or Remote control
  • Optional accessories: Rain sensors
  • Applications: Shading , Privacy , Ventilation,Security
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
