SF006002 Fixed Mount Louvered Windows

Shutters

Model Number: SF006002

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping
Inside or outside mount
Blocks heat ,Invites natural light and others
Operable blades

Also called Sombra Operable Blades ,Fixed Mount Panel Louvered Windows
55 to 115mm Aero Blade or Elliptical louvre Blade
-Operable/Adjustable Aluminium Louvre blades
-Finishing : Powder coating  and Natural Anodise

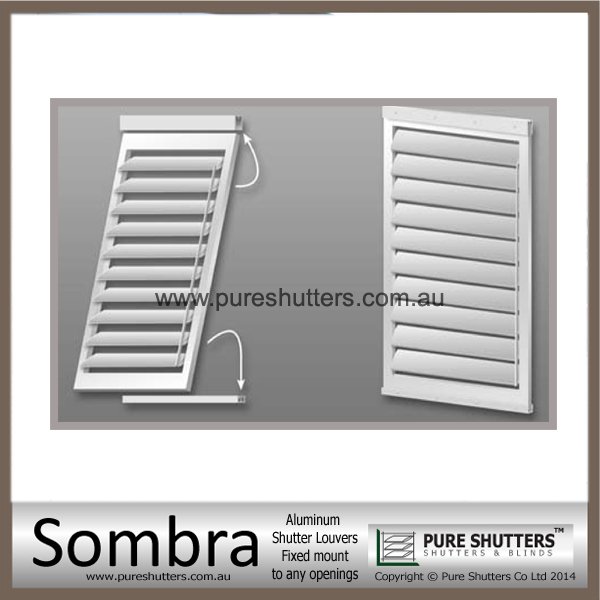

-Installation Fixed Mount with Top and Bottom U Channel or Direct mount to Window Opening or Aluminum Window casement or direct mount to Top And Bottom Sill .
-Frame : Optional Plain frame ,Window frame , Door Frame , Door Jamb or Window Jamb

Multiple applications listed down below . With its versatility and various mounting capabilites ,It is a favourite choice for Architects,Builders,end-consumers and other users .
SOMBRA can be mounted with various combinations due to its ease of installation and performance.

The Aluminium blades are shaped to Aerofoil type to have a smoother flow of air and were design tested to NZ3604 from Self weight ,low wind zone to extremely high wind zones which are also equivalent to Australian Standards of Category 1 to 4 wind zones . Suitable to any locations specially in tropical areas ,Nearby the sea or beaches, Windy terrains and other harsh climates.

Materials used:
1. Aluminium Material :
Made of AL6063,
Minimum thickness at 1.2mm ,
Tempered to T5 or T6
AS1231 Compliance

2. Stainless steel components:
SUS 303 & 304

3. Plastic components:
Anti UV
Anti Brittle
100% Virgin Material
Strong ,Rigid & Susceptible to high & Low outside Temperature ( 120 Deg C to -25 Deg C) .

4. Locks available : Flush Bolts , Blade Locks and  Keyed-Alike Locks for better Security shutters.

Multiple Applications:
-Exterior Sun Shading
-Interior Sun Shading
-Exterior Facade
-Wall Partitions
-Doors
-Windows
-Privacy
-Awnings
-Ceilings
-Bathroom Shower doors
-Bathroom Windows
-Carport doors
-Wall Dividers
-Cabinet doors,dividers
-Kitchen window shades
-Ktchen window
-Veranda shades
-Ballustrades (less than 70mm gap spacing,Safety Compliance)

Shutters  Australia
- Window Shutters Sydney , Outdoor shutters Brisbane ,Kitchen shutters Adelaide , Bedroom Shutters Melbourne

ALUMINUM SUN SHADE SHUTTERS ADAPTABLE TO ANY OPENINGS WITH HAND OPERABLE AERO BLADE or ELLIPTICAL LOUVRE BLADES with Excellent Air Flow and Optional Keyed-Alike Locks or Flush bolts for Security

FIXED PANEL MOUNT DECORATIVE WINDOW SHUTTERS FOR INDOOR SHUTTERS OR EXTERNAL SHUTTERS PROVIDES , CROSS OVER AIR VENTILATION ,LIGHT BLOCKING , NATURAL LIGHT ADJUSTMENT , PRIVACY , GOOD AIR FLOW MANAGEMENT FOR THERMAL COMFORT , AESTHETIC LOOK AND ALSO FOR SECURITY

SUN SHADE ALUMINIUM SHUTTERS OR WINDOW SHUTTERS ARE EXCELLENT REPLACEMENT FOR TIMBER SHUTTERS OR PVC SHUTTERS FOR INTERIOR OUR EXTERIOR SHUTTER LOUVER APPLICATIONS.
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Pure Shutters
  • Model Number: SF006002
  • Material: Aluminum Alloy
  • Opening Pattern: Horizontal
  • Blade Type: 55mm to 115mm Aero blade
  • Finishing,Coating: Powder coating,60 microns,AS3715,AAMA 2603 & 260
  • Finishing,Anodising: Natural Anodise,Sand Blasted,20microns,AS3715
  • Installation type: Fixed panel Mount
  • Hardness: Tempered to T5 or T6
  • Standard Compliance: AS3715:2002,AAMA 2603,AAMA 2604,AS 1231,NZ3604,AS1866,AS1170
  • Wind rating: Design tested to NZ3604 / Category 1 to 3
  • Powder: Dulux -Duralloy ,Duratec,Duratec LX
  • Warranty: 5 to 10 years
  • Components: Stainless steel grade 304 , Plastic UV stablised
  • Aluminum Shutter blades are interlaced with copy paper
  • Panels are wrapped with plastic sheet
  • Sides and corner protection
  • Partitions front and back
  • Outside carton
  • Outside markings and strapped
  • Packaging Details: Louvre blades are interlaced with copy paper , Panels are wrapped with plastic sheet ,Sides and corner protection , Partitions front and back , Outside carton , Outside markings and strapped . Shipping :
  • 20 Foot or 40 Foot Container
  • LCL or FCL
  • Delivery Detail:
  • 4 to 6 weeks
