Built-in Glass Exterior decorative Aluminum window shutters

Aluminum Alloy Shutter

Model Number: CWS003013

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping

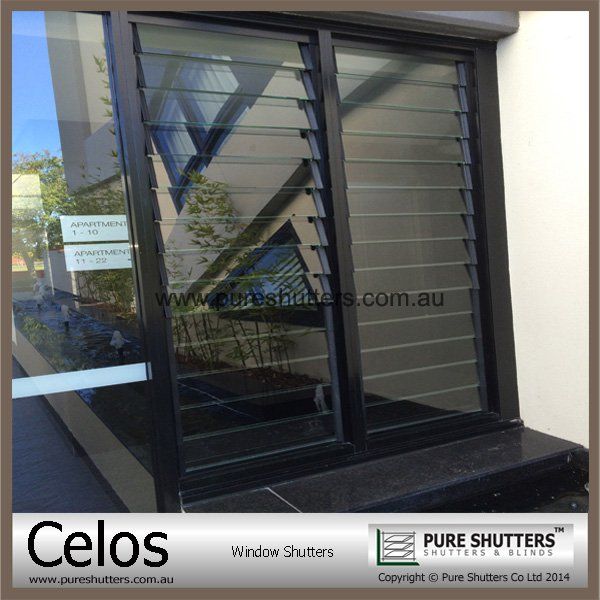

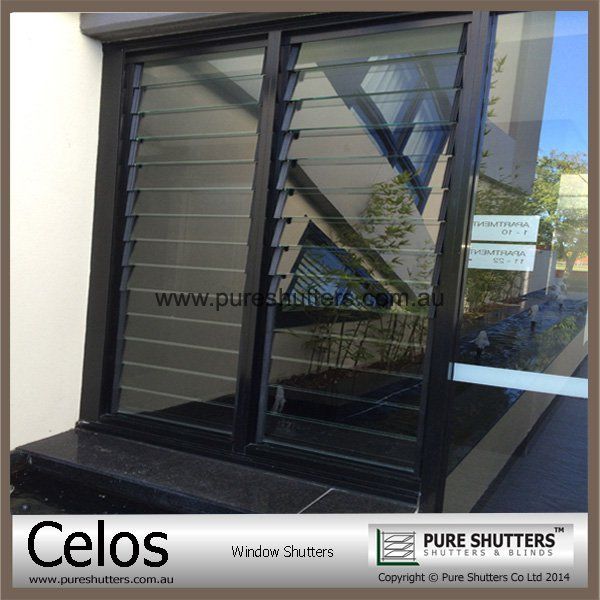

Built-in Glass Exterior decorative Aluminum window shutters
Coated frame to AS3715
152mm Glass blade size

  Exterior aluminum window shutters

Built-in Glass Exterior decorative Aluminum window shutters
CWS003013

Also called :

Glass Adjustable Window louvers
Adjustable window shutters
Aluminium glass louver
Louvered windows
Shutter door
Exterior louvered door
Waterproof exterior shutters
Exterior glass shutters
Exterior glass window shutters

BLADE END CAPS :
UV resistant , CUSTOM MADE "PE ALLOY"

BLADE HANDLE 110mm :
UV resistant , CUSTOM MADE "NYLON ALLOY"

No.of Blades per Handle : Minimum Two blades, Maximum Nine Blades

Aluminium U Channel 38x20 mm & Cross Bar handle :
Extruded from 6063,
Manufactured to AS/NZS 1866
Powder coating and Natural anodise finishings
in align with AS3715:2002 and AS1231:2000

Other componentries :
Stainless steel grade 304 Screws,Washer ,Rivet & Clips
Aluminium Bolts Bolts(optional)

Blades :
6mm Aluminium Hollow blades
6 to 6.38mm Toughened & Laminated Glass
Timber : Available upon request

Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request

RHS Frames (Optional) :
RHS supplied by others or available upon request

U Channel Assembly into frame :
Pre-punched holes on U Channel for ease of
screwing into frame

304 Grade Stainless steel Screws

Blade Cutting Deductions :
U to U Channel WIDTH less 55mm
Tolerance +/-1mm, Depends on how tight when operating
the blade handle .

Mounting options :
Sliding Shutters
End Fixed Bi-folding shuttters
Fixed Mount shutters
Hinge Mount shutters

Due to its excellent reliability and durability features as follows :
Excellent water tightness
Able to withstand moisture
Humid environment
Withstands Hot and Cold water
Flexible blade options of - Aluminum , Timber or Glass louvre blades

Materials used:
. 1 Aluminium Material:
Made of AL6063,
Minimum thickness at 1.2mm,
Tempered to T5 or T6
AS1231 Compliance

. 2 Stainless steel components:
SUS 303 & 304

. 3 Plastic components:
Anti UV
Anti Brittle
100% Virgin Material
Strong, Rigid & Susceptible to high & Low outside Temperature (120 Deg C to -25 Deg C).
Glass Exterior,Glass shutters
Multiple Applications:
-Exterior Sun Shading
-Interior Sun Shading
-Exterior Facade
-Wall Partitions
-Doors
-Windows
-Privacy
-Awnings
-Ceilings
-Protection for Hail storms, Glaciers, Flying debris and other cyclone rated areas
-Bathroom Shower doors
-Bathroom Windows
-Carport doors
-Wall Dividers
-Cabinet doors, dividers
-Kitchen window shades
-Ktchen window
-Veranda shades
-Ballustrades (less than 70mm gap spacing, Safety Compliance)

SUITABLE FOR RESIDENTIAL & COMMERCIAL :

TYPICAL  INSTALLATION ON A SINGLE TOP & BOTTOM TRACK
(OPTIONAL OUTER FRAMES)

Unlimited applications of Sombra and other PURE SHUTTERS SYSTEMS.

Suitable for Open blades or Closed blades sliding :

Option to control Glass or Aluminum louver blades either electrically or automatically operated;

Major advantages compared to blinds or roller shades :
- Lesser maintenance compared to venetian blinds;
- Easier to install than adjustable blinds;
- More durable than aluminum venetian blinds;
- Long lasting than OUTDOOR VENETIAN BLINDS;
- VOC FREE, No smell and environmentally friendly THAN PVC VENETIAN BLINDS
- No problems of warping compared to conventional Blinds;
- Better privacy and still able to maintain otuside view than ROLLER SHADES ,

SHUTTERS & LOUVRES FOR ALL SEASON !
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Pure Shutters
  • Model Number: CWS003013
  • Material: Metal
  • Pattern: Horizontal
  • Type: Aluminum Alloy Shutter
  • Style: Louver with Side Control rod
  • Product name: Exterior aluminum window shutters
  • Finishing,Coating: Powder coating,60 microns,AS3715,AAMA 2603 & 260
  • Finishing,Anodising: Natural Anodise,Sand Blasted,20microns,AS3715
  • Installation type: End fixed bifold Mount (Outside or inside bifolding)
  • Hardness: Tempered to T5 or T6
  • Standard Compliance: AS3715:2002,AAMA 2603,AAMA 2604,AS 1231,NZ3604,AS1866,AS1170
  • Wind rating: Design tested to NZ3604 / Category 1 to 3
  • Powder: Dulux -Duralloy ,Duratec,Duratec LX
  • Warranty: 5 to 10 years
  • Components: Stainless steel grade 304 , Plastic UV stablised
