Celos 152mm Jalousie louver

Shutters

Model Number: C JL152

CALL NOW & Let it ring FIVE times to get answered since we're onsite most of the time measuring windows or installing :-)

  • Product Description
  • Details
  • Packaging & Shipping

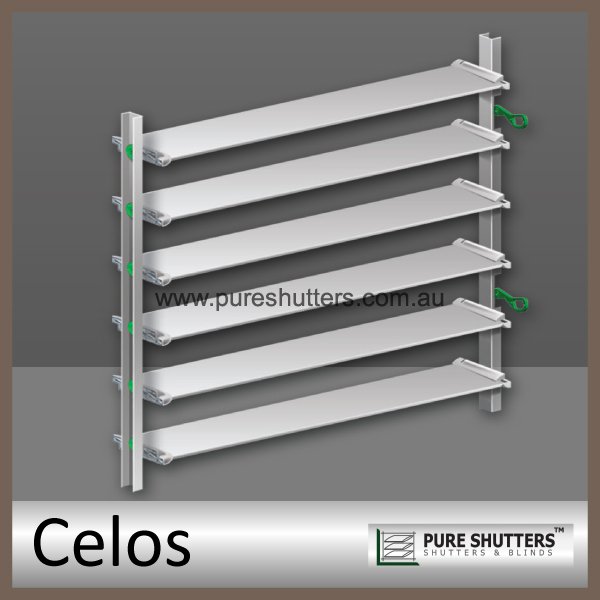

Celos Jalousie Louver with blade holders for 152mm wide Aluminium, Glass or Timber blades. Operable Handle to adjust blades

BLADE END CAPS :
UV resistant , CUSTOM MADE "PE ALLOY"
BLADE HANDLE 110mm :
UV resistant , CUSTOM MADE "NYLON ALLOY"

No.of Blades per Handle  : Minimum Two blades, Maximum Nine Blades
Aluminium U Channel 38x20 mm & Cross Bar handle :
Extruded from 6063,
Manufactured to AS/NZS 1866
Powder coating and Natural anodise finishings
in align with AS3715:2002 and AS1231:2000
Other componentries :
Stainless steel grade 304 Screws,Washer ,Rivet & Clips
Aluminium Bolts or Brass Bolts(optional)
Blades :
6mm Aluminium Hollow blades
6 to 6.38mm Toughened & Laminated Glass
Timber : Available upon request
Standard Color finishes :
Powder coat >60 micron - Standard White Satin , Black Satin
Natural Anodised >18 mircon
Custom made finishes available upon request
RHS Frames (Optional) :
RHS supplied by others or available upon request

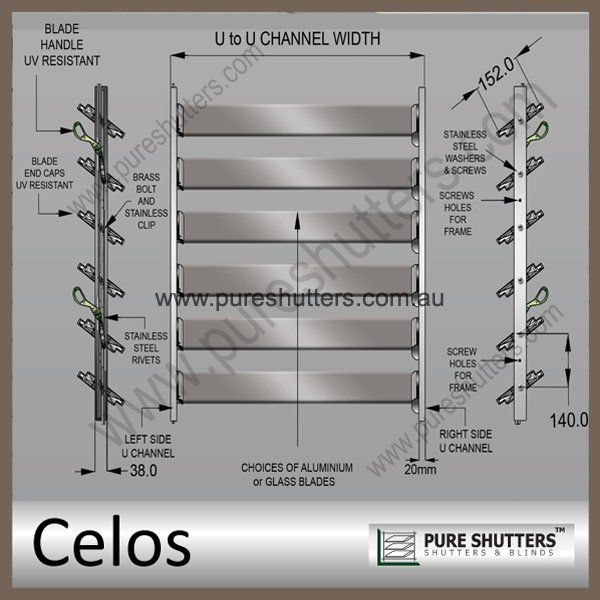

U Channel Assembly into frame :
Pre-punched holes on U Channel for ease of
screwing into frame

304 Grade Stainless steel Screws
Blade Cutting Deductions : U to U Channel WIDTH less 55mm
Tolerance +/-1mm, Depends on how tight when operating
the blade handle .
A. CELOS MOUNTED INTO OUTSIDE FRAMES :

Features:
 -CELOS SPECIAL PLASTIC ALLOY BLADE END CAPS AND HANDLE
-VARIABLE PLASTIC HANDLE LOCATIONS AND ADJUSTABLE BLADE ANGLES
- FOR NATURAL LIGHT REFLECTION , AIR VENTILATION , PRIVACY OR VIEWING ANGLE
-CELOS LOCKABLE HANDLE FOR SECURITY PURPOSES AND WATER TIGHT
- CELOS WITH SELF DRAINING BLADE END CAPS THAT KEEPS RAIN WATER AWAY
  • Type: Shutters
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PURE SHUTTERS
  • Model Number: C JL152
  • Material: Aluminum Alloy
  • Opening Pattern: Horizontal
  • Blade Type: Flat 152mm x 6mm
  • Blade End Caps: Special Plastic Alloy
  • Blade Material: Aluminium Alloy 152mmx5mm
  • Blade optional material 1: Glass 152 x 6.3mm
  • Blade optional material 2: Timber -Custom made
  • Applications: Shading , Privacy , Ventilation,Security
  • Finishings: Powder coating 60 microns and Natural anodise 20 microns
