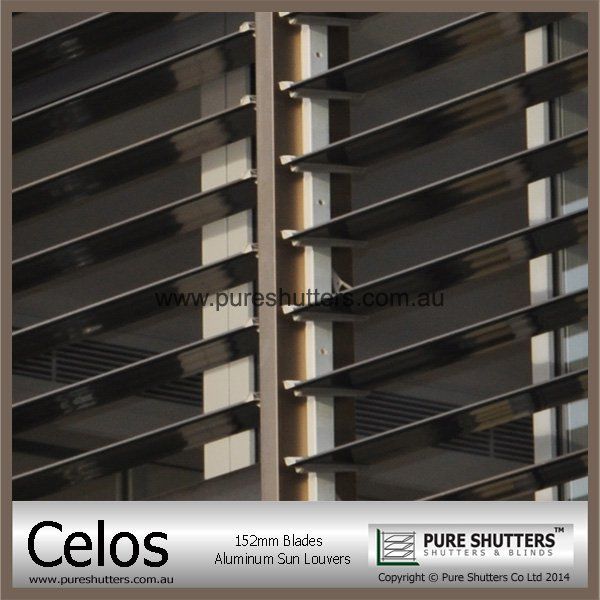

Celos 152mm Jalousie Window Louver

Jalousie window Louver with Plastic Louvre blade Holders for 1

52mm wide Aluminium, Glass, or Timber blades.

Operable Handle to adjust blades

LOUVRE BLADE HOLDERS (or END CAPS):

UV-resistant, CUSTOM-MADE "PE ALLOY"

LOUVRE BLADE HANDLE:

UV-resistant, CUSTOM-MADE "NYLON ALLOY"

The number of Louvre Blades per Handle:

Minimum Two blades, Maximum Nine Blades

Aluminium U-Channel (Vertical Section) & Cross Bar handle:

Extruded from 6063

Manufactured to AS/NZS 1866

Powder coating and Natural anodise finishings

All finishings per AS3715:2002 and AS1231:2000

Other componentry:

Stainless steel grade 304 or 316 Screws, Washer, Rivet & Clips

Aluminium Bolts or Brass Bolts(optional)

Louvre Blades:

6mm Aluminium Hollow blades

6 to 6.38mm Toughened or Laminated Glass

Timber: Available upon request

Standard Surface Finishing Thickness and Colour:

Powder coat: >60 microns - Standard White Satin, Black Satin

Natural Anodised >18 microns

Custom-made finishes available upon request

Window Opening Aluminium Frames (Optional):

Supplied by others or available upon request

Standard 304 Grade Stainless steel Screws or 316 Grade Upon Request

Main Features:

CELOS LOUVRE BLADE END CAPS & HANDLE:

Made of Special Plastic Alloy

CELOS LOUVRE BLADE END CAPS:

Self-draining that keeps Rainwater away.

PLASTIC HANDLE LOCATION:

Variable with Adjustable Louvre Blade Angles (Zero to 87 degrees)

WHY USE CELOS LOUVRE SYSTEM:

A watertight system that protects rainwater and

for Natural Light Reflection, Air Ventilation, Privacy, or Viewing Angle.

CELOS LOCKABLE HANDLE:

For Security Purposes and Watertight

Tell us about your project…

Call Now: 02 8006 8106

(Please have it ring at least Five times to get answered because we are onsite most of the time :-))

or

Email: [email protected]

• Type: Shutters
• Place of Origin: Guangdong, China (Mainland) & Sydney
• Brand Name: PURE SHUTTERS
• Model Number: C JWL152
• Material: Aluminum Alloy
• Opening Pattern: Horizontal
• Louvre Blade Type: Flat 152mm x 6mm or 6.38mm
• Louvre Blade Holders (or End Caps): Special Plastic Alloy
• Louvre Blade Material: Aluminium Alloy 152mmx5mm
• Louvre Blade optional material 1: Glass 152 x 6.3mm
• Louvre Blade optional material 2: Timber -Custom made
• Applications: Shading, Privacy, Ventilation, Security
• Finishings: Powder coating > 60 microns and Natural anodise > 18 microns
